Installing Knife Hinges

Knife hinges can be difficult to install.  The method I describe here relies on firmly fixing the hinge to the wood using tape making it much easier to scribe a precise knife line outlining the hinge.

The key to installing knife hinges is to be hyperaccurate in scribing a knife line outlining the mortise for the hinge.

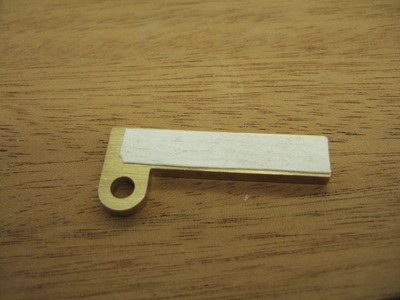

I place double stick tape on the hinge to stick it to the wood to minimize movement as I scribe around it.

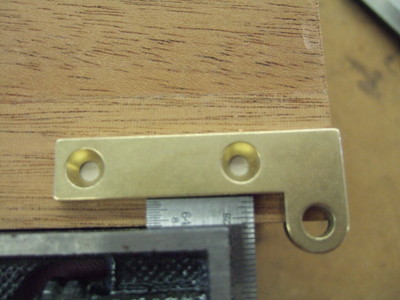

I've set my square to the precise distance I want the hinge to be from the edge.  Note the slight offset on the right to provide a tiny gap in the door on the hinge side.  The gap is about the thickness of the hinge's washer which sets the gap on the bottom and top of the door.

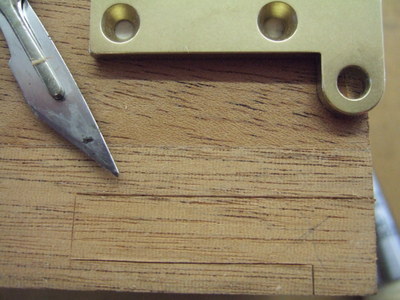

With the hinge firmly stuck to the wood, I use a surgical scapel to cut a knife line outlining the hinge.

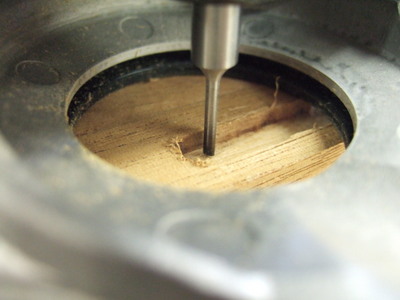

A trim router with a 1/8 inch straight bit is used to remove the bulk of the waste.  The depth of the bit relative to the bottom of the router base is set to the thickness of the hinge.  I do this more by feel than by eye, placing the hinge on the bottom of the router and adjusting the router depth until I feel the depth matches the thickness of the hinge.

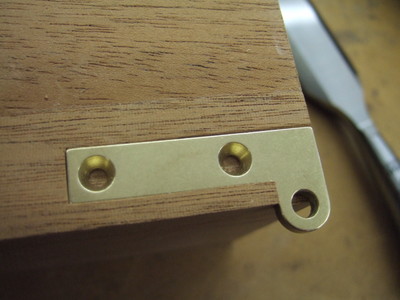

I used a chisel to clean the edge of the mortise to the knife line.  The hinge is placed in the mortise and a sharp awl is used to mark for drilling pilot holes for the bradd screws.  The fit is so tight that I'm able to actually hold the door in place without the screws.
