Step 22: Align, stack and tape the veneer sheets with
blue tape as described in step 3.
Step 23: Clamp the veneer stack under a
straightedge and cut side A.
Step 24: Carefully
loosen the blue tape and remove sheet 12 from the stack. Set sheet 12 aside for later. Reapply the blue tape to secure the remaining
11 sheets and cut side B.

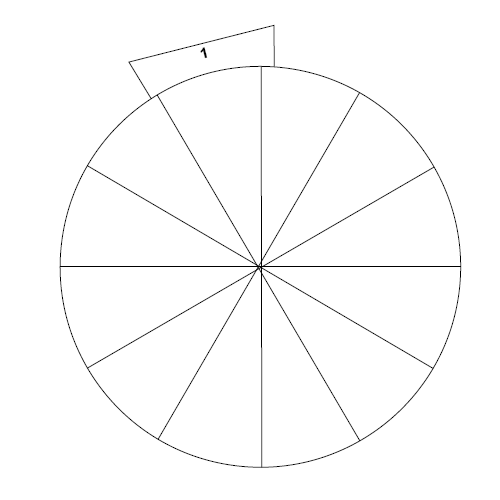

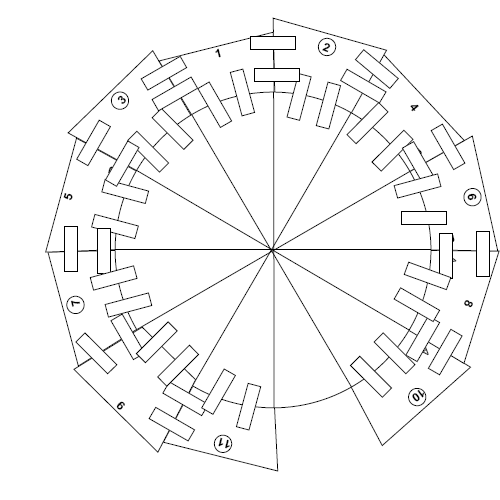

Step 25: Refer to the drawing at the left to understand how
the sheets in the stack will be positioned around the outside of the circle.
Note that while the border is shown as a finished circle the
final step of actually cutting the circle will not be done until later. The purpose of this diagram is to illustrate
the relative position of the sheets and the order in which they are attached to

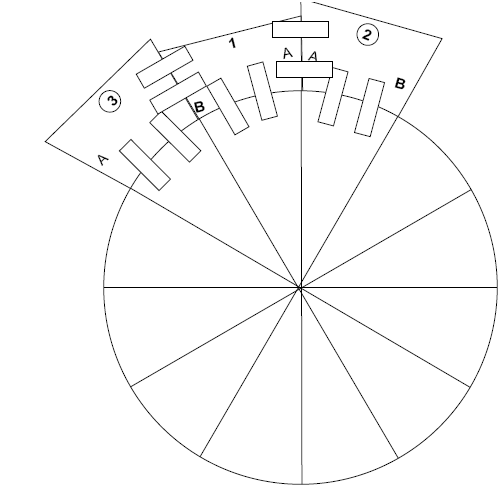

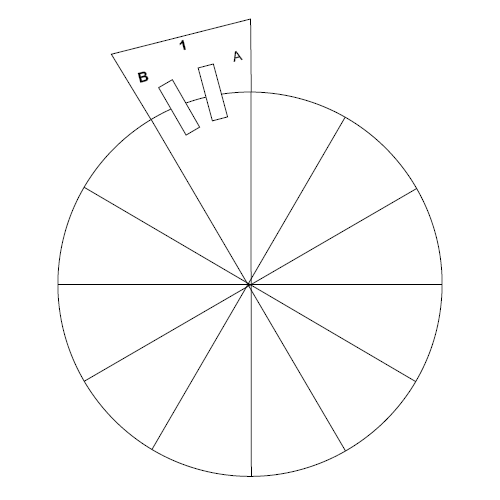

the circle, starting with piece 1. Piece
2 is flipped over and attached to the right edge of piece 1. Piece 3 is flipped over and attached to the
left side of piece 1. Sheet 4 and 5 are
attached to piece 2 and 3 and are not flipped over, etc.
|
