Larry Ciesla Woodworking


Twelve-way Radial Match Part 8

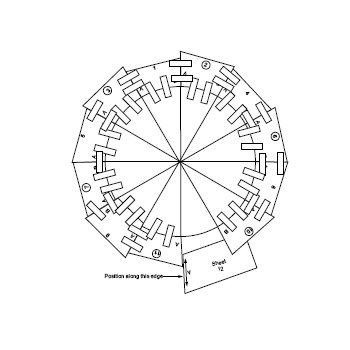

Step 28:  You only cut side A on sheet 12.  Place side A of sheet 12 next to side A of sheet 11 under the assembly and adjust sheet 12 as shown in the two drawings at the left

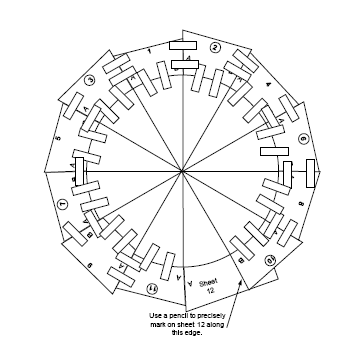

After marking the precise “B” edge of sheet 12, remove it and use a straight edge and veneer saw to cut edge B.  Use blue tape to secure sheet 12 to the assembly.

:

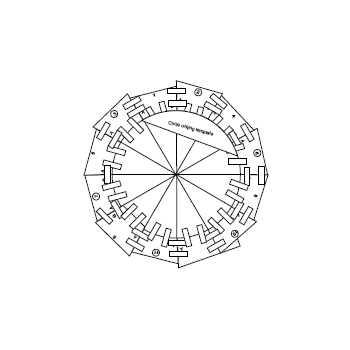

Step 29:  Place the circle cutting template onto the pattern and use a razor knife to cut exactly between the inner circle and the border:

Cut through only two of the border pieces at a time and re-tape with blue tape before moving on the next two border pieces.  Work your way around the circle in the manner until a circular joint between the border and the inner circle is complete.



Step 30:  Flip the entire assembly over and use veneer tape to secure all joints.
